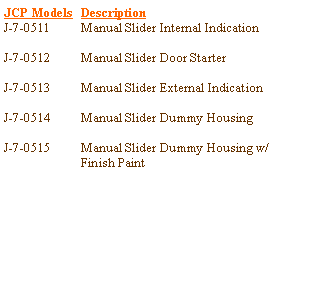

JCP Specifications: ��
Manual Slider Internal Indication (J-7-0511)
The manual slider internal indication adds a bracket and limit switch in the manual slider housing to monitor if the door is in the closed position only.� This option will not monitor if the lock bolt has been engaged.� An additional indication switch should be specified with the lock hardware set in order for the control panel to indicate if the door is closed and locked.� This option is recommended if the door is to be monitored by a control panel.
Manual Slider Door Starter (J-7-0512)
The manual slider door starter adds a bracket and a spring loaded stop in the manual slider housing to force the door open a few inches when the lock is disengaged either manually or by the control panel.� This option is recommended if an electric lock has been specified in the hardware set.
Manual Slider External Indication (J-7-0513)
The manual slider external indication adds a green indication light to the exterior of the manual housing to indicate that the lock bolt has been engaged.� An additional indication switch must be specified with the lock hardware set in order for the green light to indicate if the door lock bolt has been engaged.� It is also recommended that the JCP manual slider internal indication (J-7-0511) be specified in order to indicate that the door is closed and locked.

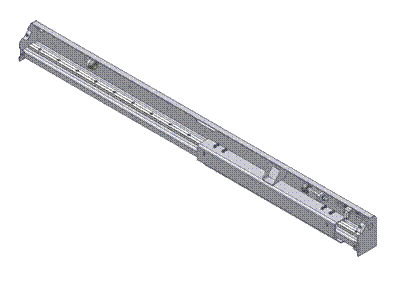

Manual Slider Dummy Housing (J-7-0514 or J-7-0515)
The manual slider dummy housing consists of the housing bracket and cover specified for the manual slider with no internal mechanism.� The dummy housing will vary in length to fill the gap between manual slider housings in a row to give a continuous housing appearance.� The materials are shipped assembled and the HRPO steel will receive one shop coat of our standard primer (J-7-0514).� Manual slider dummy housings specified to receive finish paint will receive one shop coat of our standard primer and one shop coat of our standard finish paint with a textured finish.� Finish paint color will be from our standard finish paint color palette (J-7-0515).
Always verify that you have the correct templates and wiring diagrams for your specific project.
