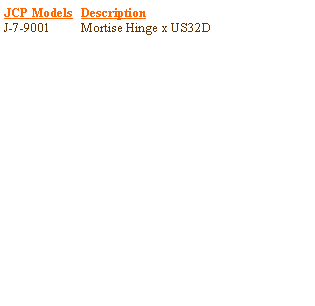

JCP Specifications:The JCP mortise hinge is 4-1/2� x 4-1/2� x 3/16� thick investment cast stainless steel with a US32D finish and a security stud on each hinge leaf.� The hinge has hospital tips, a stainless steel pin that is concealed and non-removable, and maintenance-free anti-friction bearings.� The hinge is supplied with Torx w/ pin security screws and meets ANSI/BHMA A156.7, NFPA 80, and the NAAMM standard HMMA 863-96.


Always verify that you have the correct template for your specific project.
