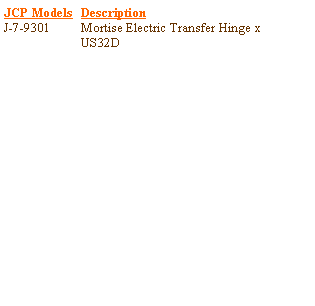

JCP Specifications:The JCP mortise electric transfer hinge is 4-1/2� x 4-1/2� x 3/16� thick investment cast stainless steel with a US32D finish.� The hinge has hospital tips, is non-handed, reversible, and maintenance-free anti-friction bearings.� The hinge is supplied with Torx w/ pin security screws and meets ANSI/BHMA A156.7, NFPA 80, and the NAAMM standard HMMA 863-96.� This hinge also has five (5) color coded 18 gauge UL recognized wire.� Note that this hinge is non-load bearing and requires additional hinge(s) to carry the load of the door.�


Always verify that you have the correct template for your specific project.
